Project 2- Contextual Fit

Narrative

The Smith family enjoys having card nights, but right now, Mrs. Smith and Mr. Smith think the family room gets cramped at times playing their games To fix this, they've decided to add onto their home. They want a larger family room where they can play cards without being uncomfortable and cramped. Mrs. Smith has also asked for a master bed and more outdoor space for family activities, while Mr. Smith would like an exercise room.

Hierarchy: Family Room

Meta-Idea: Cards


Sorting Of Space

Public:

Family Room

Deck

Exercise Room

Patio

Private:

Bathrooms

Bedrooms

Master Bath

Master Bed

Group:

Family Room

Deck

Exercise Room

Patio

Individual:

Bathrooms

Bedrooms

Master Bath

Master Bed

Existing Floor Plan

Private:

Bathrooms

Bedrooms

Master Bath

Master Bed

Loud:

Family Room

Deck

Exercise Room

Patio


Existing Building Systems & Patterns

Screenshot 2025-04-16 133411.png

Final Floor Plans

Lower Level Floor Plan

new ground.png

Lower
Patio

Dining Room

Bedroom

Bath

Kitchen

Entry Level Floor Plan


Upper
Patio

Dining Room

Bedroom

C.L

Bath

Family Room

Master
Bedroom

Master
Bath

Upper Level Floor Plan


Upper
Patio

Exercise Room

Family Room

Office

Bedroom

Bedroom

Bath

Bedroom

Open to Living Room


Circulation

New Floor Plan Analysis


Additive/Subtractive


Subtractive


Circulation


Additive


Structure

Hierarchy

Open/Close

Function


Hierarchy

Girder

Columns

Bearing Walls

Open

Close

Private

Public


Preliminary Designs

1.

2.

3.

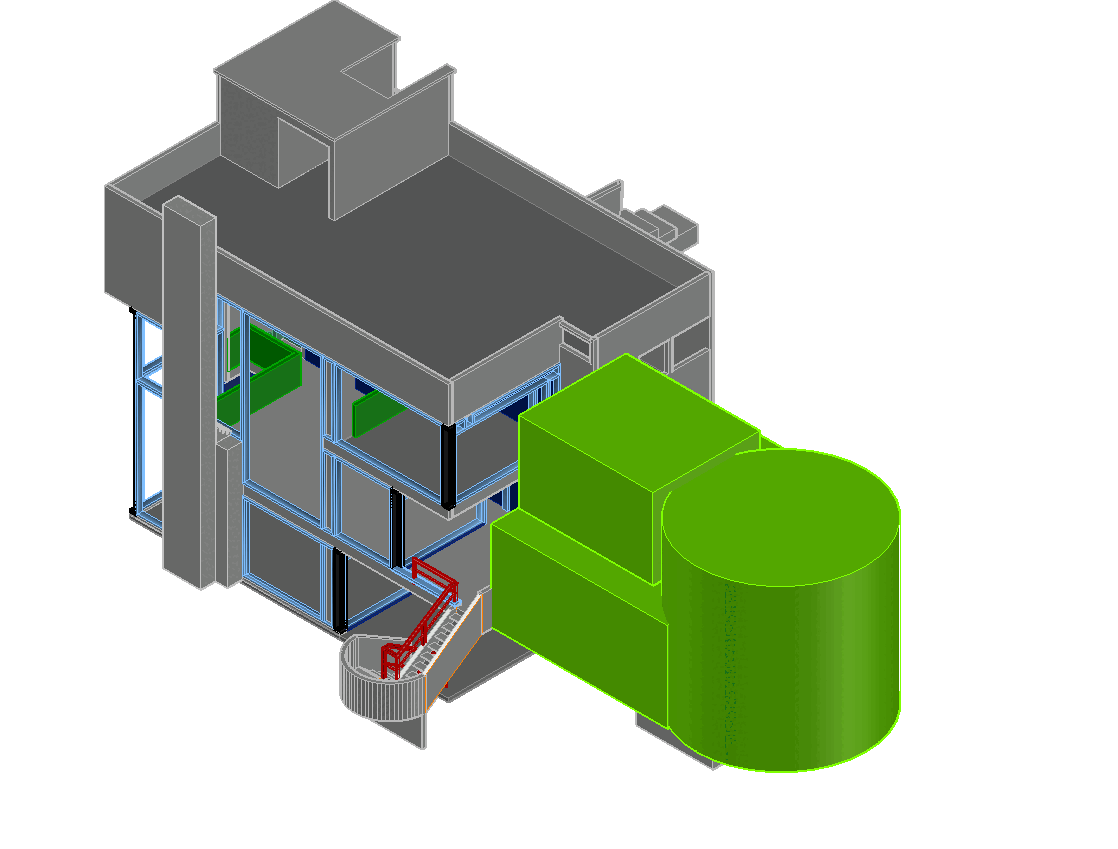

The following are three of the preliminary designs which were created by mapping out the necessary masses and circulation path. After observing which one had the most potential, I decided to go with the second design.


Conceptual Meta-Idea: Cards


Existing Systems brought into the new addition:


Bearing Walls


Railings


Glass Curtain Wall

Elevations


Columns and Girders

Front Elevation

Right Elevation


Left Elevation

Back Elevation


Sections


3D Sections


Transformation Process

Smith House (1)-Temp0001.png

Renders
